Prefabricated Steel Structure warehouse hot dipped galvanized long service life
| MOQ: | 1000 sqm |
| Price: | USD 60-90 / sqm |
| Standard Packaging: | Packed on steel pallet with fixture and loaded into 40'HQ/OT |
| Delivery Period: | 4-6 weeks after shop drawing get approval |
| Payment Method: | T/T,L/C |
| Supply Capacity: | 100,000 sqm / month |
Detail Information
Place of Origin
Shandong, China
Brand Name
TISIN
Certification
ISO, CE, SGS
Model Number
TISIN-PH-Warehouse261222
Application Fields:
Logistics, Manufacturing, Agriculture, And Retail For Storing Goods, Equipment, Or Raw Materials.
Maximum Roof Load (lb./sq.ft):
20+lb/sq.ft
Raw Steel Material::
Q235B, Q355B, ASTM A36
Frame Type::
Portal Frame
Working Scope::
Design,Fabrication, Installation
Life Span::
Around 50-70 Year
Highlight:
prefabricated steel warehouse galvanized
,steel structure warehouse long lifespan
,hot dipped galvanized warehouse
Product Description

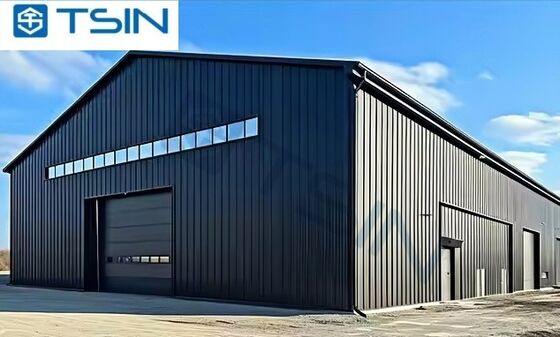

Hot dipped galvanized Prefabricated Steel Structure Warehouse
Product Attributes
| Application Fields | Warehouse and workshop in some harsh region ( slaty spray ,high temperature ,high humdity ) |
|---|---|
| Maximum Roof Load | 20+ lb/sq.ft |
| Raw Steel Material | Q235B, Q355B, ASTM A36 |
| Frame Type | Portal Frame or frame structure |
| Working Scope | Design, Fabrication, Installation |
| Life Span | more than 50 Years |
Product Overview
Steel structure warehouses are industrial storage facilities built with steel as the primary structural material, valued for their strength, versatility, and cost-effectiveness. The prefabricated steel structure warehouse is a complete building solution including internal support and external enclosure structure.
Key Specifications
| Dimension | Customizable length × width × eave height with various roof slopes |
| Type | Single/double/multi-slope; Single/double/multi-span; Single/double/multi-floor configurations |
| Foundation | Concrete beam with steel foundation bolts |
| Column & Beam | Hot rolled or welded H steel Q355B/345B with high strength bolts connection |
| Bracing | Column bracing , roof bracing , Tube bracing ,Bridging , Knee Bracing |
| Purlin | Q235B C/Z section steel (C160-300 or Z160-300) |
| Roof & Wall Panel | Single colorful corrugated steel sheet with AZ100-275 HDP or PVDF painting or sandwich panel with rock wool, or PIR insulation |
Key Performance Characteristics
- High Strength & Durability: Withstands heavy loads and harsh weather conditions (strong winds, snow, rain) with a service life of 50+ years
- Large Span & Flexible Space: Supports column-free spans of 20-30 meters for maximum storage area and easy reconfiguration
- Quick Construction: Prefabricated components reduce construction time by 30-50% compared to concrete structures
- Cost-Efficiency: Lower labor costs, minimal maintenance, and potential for relocation or resale
- Sustainability: 100% recyclable materials with energy-efficient insulation options
Planning Considerations
- Accurate load-bearing calculations for storage weight and equipment
- Rust-resistant coatings for humid or coastal environments
- Proper insulation and ventilation systems
- Optimized space utilization for logistics operations
- Compliance with local building codes and safety standards
- Design flexibility for future expansion needs
Packaging & Quality Control
Our comprehensive quality control measures include:
- Fabrication material inspections
- Precision measuring, cutting, and welding
- Accurate hole and cleat placement
- Careful packaging and loading sequence
- Optional on-site erection services
-
Frequently Asked Questions
1.Can I visit your factory before ordering?
Reply:Yes, we welcome factory visits. We provide airport pickup and hotel booking services for your convenience.
2.What is your cooperation process?
Reply:1. Share project details → 2. Free design & revisions → 3. 30% deposit → 4. Finalize design → 5. Production → 6. Optional installation services
3.What is the price range?
Reply:Prices range from $30 to $100+ per square meter depending on size, materials, and design complexity.
4.Do you provide installation services?
Reply:We provide detailed construction manuals and drawings. On-site installation is available with costs covered by the buyer.
5.What is your delivery time?
Reply:Typically 30 days after deposit, with partial shipments available for large orders.
6.What anti-rust treatments do you offer?
Reply:Options include standard paint, epoxy zinc primer, hot-dip galvanization, galvanization+PU finish, or stainless steel construction.
