Non Magnetic Steel Structure Building Precision Fabrication Tolerances

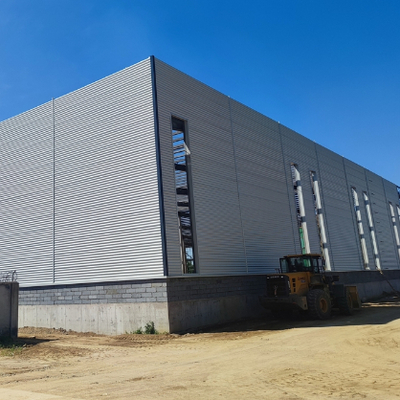

Tsin Steel Structure Workshop is a premier industrial solution combining advanced engineering with practical functionality. Featuring a prefabricated steel framework for rapid assembly, these structures offer exceptional durability, flexibility, and safety while meeting international standards.

• High-grade, high-strength steel for exceptional durability
• Modular design for easy expansion or modification
• Meets strict international safety standards for fire resistance and seismic performance
• Energy-efficient components reduce heating and cooling costs
• Corrosion-resistant coatings minimize maintenance requirements

1. Steel Columns
Vertical members providing primary support, typically made of hot-rolled or welded H-shaped steel sections. Designed for high load-bearing capacity with size and strength calculated according to specific requirements including roof weight, crane loads, and additional live/dead loads.

2. Steel Beams
Horizontal members spanning across columns to support roof and floors. Commonly using H-beams and C-channels, designed for long spans to create unobstructed working spaces. Connected to columns via bolting or welding for rigid stability.

3. Roof and Wall Panels
Lightweight yet durable metal panels (often corrugated steel sheets) providing weather protection. Insulated options available for temperature control. Metal wall panels preferred for quick installation and structural compatibility.

4. Bracing Systems
Diagonal steel rods or angles installed between columns and beams to enhance stability against wind and seismic loads. X-shaped bracing used in high-wind areas to effectively transfer lateral forces to foundations.

H-shaped steel sections and C/Z purlins serve distinct structural roles. H-beams provide exceptional load-bearing capacity for primary members, while C and Z purlins serve as secondary elements supporting roofing and wall cladding. Z purlins offer better structural continuity for longer spans.

The manufacturing process begins with quality-inspected raw materials cut to precise dimensions using CNC plasma or laser cutting. Forming processes shape components, followed by high-strength welding with ultrasonic testing for quality assurance. After assembly, components undergo surface treatment including shot blasting and protective coatings before final quality checks and packaging.

Components are securely packaged and shipped via global maritime networks, ensuring safe delivery to construction sites worldwide.

Qingdao Tsin Steel Structure Construction Technology Co., Ltd. provides integrated solutions for steel structures including design, fabrication, and installation. With a 30,000m² factory and 2,500-ton monthly capacity, we serve global markets with advanced CAD/Tekla design capabilities and comprehensive project management.
