Custom Roof Slope Steel Structure Warehouse Rainproof Bulk Cargo Storage

Custom Roof Slope Steel Structure Warehouse Rainproof Bulk Cargo Storage

You are encouraged to submit your demands for customized scheme and technical consultation.

1. Introduction

Custom roof slope steel structure warehouses have become the most practical and cost-effective building solution for bulk cargo storage, industrial stocking, and logistics warehousing worldwide. Unlike fixed-design traditional buildings that fail to adapt to regional climate and storage demands, this pre-engineered steel warehouse features fully customizable roof slope, professional rainproof enclosure systems, and high-strength steel load-bearing frames, perfectly catering to the long-term storage needs of grain, minerals, construction materials, chemical bulk goods, and general industrial bulk cargo. Bulk cargo is usually unpiled, large in volume, heavy in weight, and extremely sensitive to rain, humidity, and water accumulation. Therefore, the roof drainage capacity and overall rainproof performance of the warehouse are the core indicators affecting storage quality. This article comprehensively introduces the structural characteristics, customized roof slope design advantages, professional rainproof systems, product strengths, production processes, material selection, and transportation and erection solutions of custom slope steel warehouses for bulk cargo storage.

2. Basic Overview of Steel Structure Warehouse

The custom roof slope bulk storage warehouse adopts a standard pre-engineered steel portal frame system, which is the most mature structural type for large-span industrial warehouses. The main load-bearing system is composed of hot-rolled or welded H-section steel columns and main beams, with high structural stability, strong compression resistance, and excellent wind and seismic resistance. Secondary supporting components include C/Z type steel purlins, tubular steel bracings, tie rods, and base anchor bolts, forming an integrated stable frame system that disperses and bears building loads such as dead weight, wind pressure, snow pressure, and cargo pressure.

All steel components are factory prefabricated with unified standard sizes and precise hole positions, realizing full bolt assembly on site without on-site welding. This structural design greatly reduces on-site construction difficulty, shortens the construction cycle, and avoids structural instability caused by on-site irregular construction. The internal space of the steel warehouse is open and pillar-free in the large span, which fully meets the free stacking, mechanical handling, and turnover needs of irregular bulk cargo, maximizing the utilization rate of indoor storage space.

3. Core Advantage: Custom Roof Slope Design for Rainproof Storage

Roof slope is the key factor determining the drainage and rainproof performance of bulk cargo warehouses, and it is also the biggest advantage of this customized steel warehouse. Traditional fixed-slope warehouses often have hidden dangers such as slow water drainage, roof ponding, and rainwater leakage due to unreasonable slope design, which leads to damp deterioration, mildew, and corrosion of bulk cargo. Our warehouse supports full custom roof slope (conventional slope range: 1:10 to 1:20), and the slope is professionally designed according to local annual rainfall, rainfall intensity, wind direction, and building span.

For areas with heavy rainfall and frequent rainstorms, we adopt a larger roof slope to accelerate rainwater sliding and drainage, completely avoid roof water accumulation, and eliminate the risk of water leakage caused by long-term ponding soaking the roof panels and sealing strips. For dry and low-rainfall areas, a moderate small slope is used to balance structural stability and building aesthetics while meeting basic drainage needs. The customized slope design is matched with professional gutter and downpipe systems to form a complete rainwater collection and drainage system, ensuring no rainwater backflow, no edge seepage, and no indoor water accumulation in extreme rainy weather, providing a fully dry and safe storage environment for bulk cargo.

4. Professional Rainproof System & Enclosure Design

To adapt to the rainproof storage requirements of bulk cargo, the warehouse is equipped with a complete set of waterproof and rainproof systems covering roofs, walls, and joints. In terms of roof materials, high-quality pre-coated zinc-aluminum steel sheets or color steel profiled sheets are selected, with a substrate thickness of 0.4mm–0.6mm. The sheets have strong weather resistance, anti-corrosion, and waterproof performance, and the surface coating can resist ultraviolet erosion and rainwater scouring for a long time without peeling or rusting.

All roof panel joints are sealed with high-strength waterproof glue and concealed fasteners, avoiding the hidden danger of water leakage caused by exposed screw holes. The external wall adopts matching color steel wall panels, and the bottom of the wall can be equipped with brick retaining walls as required. The brick wall not only enhances the collision resistance of the warehouse bottom and prevents forklift and cargo impact damage but also effectively blocks ground moisture and rain splash, further improving the overall rain and moisture resistance of the warehouse.

In addition, the warehouse is designed with waterproof flashing plates at the connection of roof and wall, gutter corners, and downpipe interfaces. All detail nodes are optimized for rainproof treatment, forming a three-dimensional all-round rainproof system, which fundamentally solves the problem of bulk cargo being damp and damaged by rain.

5. Comprehensive Advantages of Custom Slope Steel Warehouse for Bulk Storage

First, excellent environmental adaptability. The customizable roof slope and supporting rainproof system can adapt to various climatic environments from tropical rainy areas to temperate arid areas, ensuring stable storage performance all year round. Second, high space utilization. The large-span pillar-free design realizes flexible stacking of bulk cargo, and the indoor clear height can be customized according to storage volume, which is far more flexible than traditional concrete warehouses.

Third, low comprehensive cost. The prefabricated steel structure has a short construction cycle, saves labor and time costs, and the steel materials are recyclable, with low later maintenance costs. Fourth, strong durability. The steel frame is treated with shot blasting and anti-rust coating, which can resist corrosion, wind, and rain erosion, with a service life of more than 30 years. Fifth, flexible expandability. The warehouse structure can be disassembled, modified, and expanded at any time, which is convenient for customers to adjust the storage scale according to business changes.

6. Standard Production Process of Steel Warehouse Components

The production of custom roof slope steel warehouses follows strict industrial standardized procedures. Firstly, according to customer's warehouse size, local climate parameters, and storage requirements, the professional technical team completes the optimized design of roof slope, structural load calculation, and detailed shop drawing confirmation. After the drawings are confirmed, high-quality Q235B/Q355B steel raw materials are selected for incoming quality inspection to ensure that the material strength and specifications meet industrial standards.

Then, CNC precision cutting, drilling, and welding of steel components are carried out. The main frame beams and columns are automatically welded to ensure firm welding seams and uniform stress. After welding, all components are shot blasted to remove rust and scale, and then coated with anti-rust primer and weather-resistant topcoat to enhance anti-corrosion and rain resistance. Finally, dimension inspection, welding quality inspection, and overall performance testing are carried out. Qualified components are marked, bundled, and packaged to ensure accurate matching during on-site installation.

7. Scientific Transportation & On-Site Erection

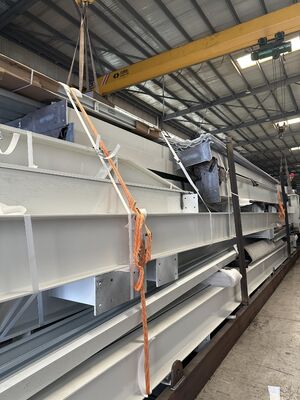

In view of the export and cross-regional transportation characteristics of steel warehouses, we adopt scientific packaging and transportation schemes. All steel purlins, wall and roof panels, and small accessories are tightly bundled and stacked to maximize container utilization. Regular H-beam main frames are packaged in standard 40HQ containers, with fixed strapping and cushioning materials to prevent deformation and friction damage during transportation.

Different from bulky and deformable truss structures, the optimized H-beam frame is easy to stack and transport, which greatly reduces ocean freight costs and avoids structural deformation during transit. After the goods arrive at the destination, the on-site erection team completes the assembly in accordance with the standard process. The whole construction process is efficient and standardized, and the warehouse can be put into bulk cargo storage use in a short time.

8. Conclusion

The custom roof slope steel structure warehouse is a targeted professional storage solution for bulk cargo rainproof storage. Through personalized roof slope customization, all-round rainproof node design, high-strength steel frame structure, and standardized production and transportation system, it perfectly solves the pain points of easy water accumulation, rain leakage, and cargo damp damage in traditional warehouses. With the advantages of strong climate adaptability, high space utilization, low comprehensive cost, and long service life, it has become the preferred storage facility for bulk cargo logistics, industrial manufacturing, and material turnover industries around the world, providing stable, safe, and efficient storage guarantees for various bulk materials.
