Custom Industrial Steel Structure Fabrication For Hall Workshop Applications
| MOQ: | 1000 sqm |
| Price: | USD 40-60 / sqm |
| Standard Packaging: | Packed on steel pallet with fixture and loaded into 40'HQ/OT |
| Delivery Period: | 6 weeks after shop drawing get approval |
| Payment Method: | T/T,L/C |
| Supply Capacity: | 100,000 sqm / month |
Industrial Steel Structure Fabrication
,Hall Steel Structure Fabrication
,Workshop pre fab steel

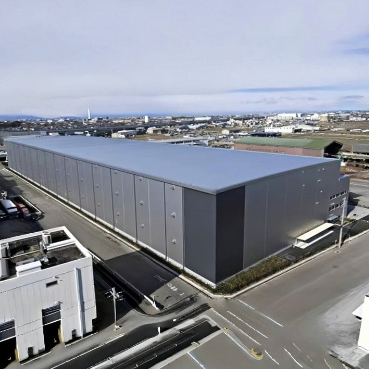

Warehouse Structure Overview
The warehouse adopts a portal steel frame design, consisting of:
-
Steel Columns
-
Steel Beams
-
Bracing Systems
Together with enclosure components, this system creates a fully sealed structure that withstands severe weather, including strong winds, heavy rain, and snow loads.
Precision Fabrication & Easy Assembly
All steel components are precision-cut, welded, drilled, and painted in our workshop before delivery. On-site, they are assembled with high-strength bolts, ensuring quick installation and reduced labor costs.
Key Structural Elements
The steel frame incorporates five essential elements:
-
Tension Members
-
Compression Members
-
Bending Members
-
Combined Stress Members
-
Connection Components
This configuration guarantees exceptional stability, long service life, and versatile applications for modern warehouses.
| Application Fields | Warehouse, Multi-building, Workshops & plants, Hospital, School, Office, Apartment |
| Drawing Design | AUTOCAD, SOLIDWORKS, TEKLA |
| Maximum Roof Load | 20+lb/sq.ft |
| Raw Steel Material | Q235B, Q355B, ASTM A36 |
| Frame Type | Portal Frame |
| Design Parameter | Wind Load, Snow Load And Earthquake |
| Working Scope | Design, Fabrication, Installation |
| Life Span | 30-50 Years |
Our high-strength prefabricated steel structure offers a complete solution with rapid delivery and expert installation guidance. The design integrates an internal load-bearing steel frame with an external enclosure system for exceptional durability.
- Robust Portal Frame: Columns, beams, and bracing create a sealed building resistant to extreme weather
- Precision Manufacturing: Components cut, welded, drilled, and painted in our workshop
- Quick Installation: High-strength bolt assembly reduces labor costs
- Structural Elements: Tension, compression, bending, and combined-stress members
- Lightweight with high strength and large spans
- 20-30% lower cost than traditional buildings
- Shorter construction period with simple on-site assembly
- High fireproof performance and corrosion resistance
- Easily disassembled, moved, and recycled
Dimension: Custom length * width * eave height with variable roof slope
Type: Single/double/multi-slope; Single/double/multi-span; Single/double/multi-floor
Foundation: Concrete with steel foundation bolts
Column and Beam: Hot rolled or welded H steel Q355B with high strength bolts
Bracing: X or V type from angle steel or pipe
Purlin: Q235B C/Z section steel (C160-300 or Z160-300)
Roof/Wall Panel: Corrugated steel sheet or insulated sandwich panel
- Comprehensive material inspections before and after fabrication
- Precision measuring, cutting, and welding processes
- Accurate hole and cleat placement for structural reliability
- Professional support for on-site erection when required
- Specialization: Integrated solutions for steel structure workshops, warehouses, and multi-storey buildings
- Capacity: 2,500 tons/month with 20,000 m² workshop space
- Services: Layout consulting, structural design, fabrication, delivery, and installation guidance
- Experience: 20+ years in complete steel structure solutions
- Global Reach: Serving South America, Africa, Oceania, and other markets
