Portal Frame Prefabricated Steel Frame Building Custom Insulation
| MOQ: | 1000 sqm |
| Price: | USD 40-60 / sqm |
| Standard Packaging: | Packed on steel pallet with fixture and loaded into 40'HQ/OT |
| Delivery Period: | 6 weeks after shop drawing get approval |
| Payment Method: | T/T,L/C |
| Supply Capacity: | 100,000 sqm / month |
Detail Information
Place of Origin
Shandong, China
Brand Name
TSIN
Certification
ISO, CE, SGS
Model Number
TSIN
Document
Warranty:
5 Years
Maintenance Costs:
Reduced
Labor Costs:
Lower
Connection:
Bolts
Insulation:
EPS, Glasswool, Rockwool, PU On Option
Thickness Of Panel:
50mm, 75mm, 100mm, 150mm, 200mm, 250mm
Using Life:
50 Years
Product:
Steel Structure
Material Grade:
Q355B, Q235B
Structure Type:
Portal Frame
Design Load:
Wind, Snow, Seismic
Design Software:
PKPM, Tekla Structures, CAD
Sand Blasting:
Sa 2.5
Surface Treatment:
Anti-corrosive Paint Or Hot Dipped Galvanized
Highlight:
prefabricated steel frame building
,steel frame building with insulation
,Custom Insulation steel building
Product Description
Prefabricated Steel Frame Building with 50-Year Lifespan and Custom Insulation
Product Specifications
| Attribute | Value |
|---|---|
| Warranty | 5 Years |
| Maintenance Costs | Reduced |
| Labor Costs | Lower |
| Connection | Bolts |
| Insulation | EPS, Glasswool, Rockwool, PU On Option |
| Thickness Of Panel | 50mm, 75mm, 100mm, 150mm, 200mm, 250mm |
| Using Life | 50 Years |
| Material Grade | Q355B, Q235B |
| Structure type | Portal frame |
| Design Load | Wind, Snow, Seismic |
High-strength prefabricated steel structure warehouse offering comprehensive one-stop solutions with fast delivery and expert installation guidance.
Application Fields
Warehouse, Multi-building, Workshops & plants, Hospital, School, Office, Apartment

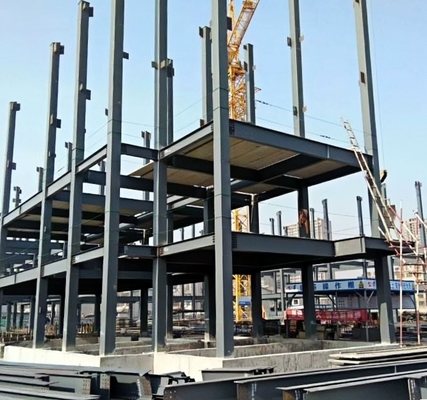

Structural Design
The steel frame features a portal frame structure, consisting of steel columns, beams, and bracing systems. When combined with the external enclosure, it forms a completely enclosed building that is designed to withstand harsh weather conditions.
Construction Features
- Lightweight construction with high strength, large spans, and reduced foundation load
- Shorter construction period compared to traditional concrete buildings
- 20-30% lower investment cost than conventional structures
- Excellent fireproof performance and corrosion resistance
- Easily disassembled, relocated, and recycled for sustainability
Technical Specifications
- Dimension: Custom length × width × eave height with roof slope
- Type: Single/double/multi-slope; Single/double/multi-span; Single/double/multi-floor
- Foundation: Concrete and steel foundation bolts
- Column and Beam: Hot rolled or welded H steel Q355B with high strength bolts connection
- Bracing: X or V type bracing made from angle steel or pipe
- C/Z Purlin: Q235B C/Z section steel (C160-300 or Z160-300)
- Roof/Wall Panel: Colorful corrugated steel sheet or sandwich panel with insulation
Quality Assurance
We enforce strict quality control measures throughout the entire project lifecycle, including:
- Material inspections before and after fabrication
- Precision measuring, cutting, and welding
- Accurate placement of holes and cleats
- Proper packaging and organized loading sequence
- On-site erection as needed
Company Profile
Qingdao Tsin Steel Structure Construction Technology Co., Ltd. provides integrated solutions for steel structure workshops, warehouses, and multi-storey buildings.
Who are we?
Based in Shandong, China since 2025, we serve global markets with a team of 5-10 professionals.
How do we guarantee quality?
Pre-production samples and final inspections before shipment ensure consistent quality standards.
Why choose us?
20+ years experience providing complete steel structure solutions with integrated design, fabrication, and installation services.
