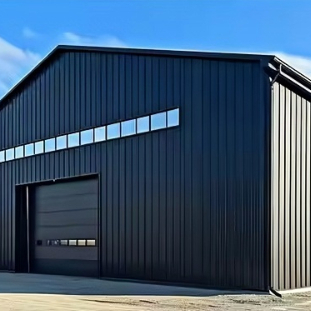

Large Span Steel Structure Building Coal Storage Space Frame Warehouse Bunker
| MOQ: | 1000 sqm |
| Price: | USD 40-60 / sqm |
| Standard Packaging: | Packed on steel pallet with fixture and loaded into 40'HQ/OT |
| Delivery Period: | 6 weeks after shop drawing get approval |
| Payment Method: | T/T,L/C |
| Supply Capacity: | 100,000 sqm / month |
Large Span Steel Structure Building
,50mm Steel Structure Building
,75mm peb building
| Attribute | Value |
|---|---|
| Warranty | 5 Years |
| Maintenance Costs | Reduced |
| Labor Costs | Lower |
| Connection | Bolts |
| Insulation | EPS, Glasswool, Rockwool, PU On Option |
| Thickness Of Panel | 50mm, 75mm, 100mm, 150mm, 200mm, 250mm |
| Using Life | 50 Years |
| Product | Steel Structure |
| Material Grade | Q355B, Q235B |
| Structure type | Portal frame |
| Design Load | Wind, Snow, Seismic |
| Design software | PKPM, Tekla structures, CAD |
| Sand blasting | Sa 2.5 |
| Surface treatment | Anti-corrosive paint or hot dipped galvanized |
The Modern Prefabricated Steel Building is designed for easy assembly and recyclability, making it an excellent choice for industrial warehouses, offices, and residential use. Constructed from high-quality steel, it features a robust load-bearing main frame made up of beams and columns.
This building includes a comprehensive bracing system to ensure stability and durability:
- Tie bars
- Knee bracing
- Stay bars
- Column bracing
- Horizontal bracing
These components work in conjunction with precision-engineered roof, wall, and floor systems to create a reliable metal structure.
- Superior Strength: Utilizes steel plates or sectional steel for enhanced structural integrity and improved seismic resistance.
- Faster Construction: Prefabricated components allow for quick on-site assembly, significantly reducing construction time.
- Sustainability: Steel is both reusable and recyclable, minimizing construction waste and supporting environmental protection.
| Products | Steel Structure Warehouse |
|---|---|
| Frame type | Portal frame, multi-story frame |
| Main frame | Hot-rolled or Welded H beam and column, Q355B steel |
| Bracing components | Tie bar, staying bar, Horizontal bracing, Column bracing |
| Cladding system | Sandwich panel with glass wool, rock wool, PU insulation, Corrugated color steel sheet |
| Accessory | Ridge tile, trim, Gutter, Down pipe, skylight, clerestory |
| Door | Roll up door, industrial section door, swing door, Sliding door |
| Window | PVC window, aluminum window, metal louver |
Prefabricated steel components are installed on-site according to detailed drawings. The assembly sequence includes steel columns with cross-bracing, roof beams and horizontal bracing, and purlins and enclosures.
The lightweight nature of steel reduces foundation expenses, while rapid construction allows for earlier operation. Overall economic benefits surpass those of traditional concrete buildings.
Factory-manufactured components are assembled on-site, drastically shortening build time. A typical steel structure can be installed in a matter of weeks.
Corrugated color steel sheets and sandwich panels provide energy-saving properties. Dry construction minimizes dust and pollution, while the recyclability of steel further reduces environmental impact.
- Shorter Construction Period: Minimal on-site welding in prefabricated components allows for significantly faster construction compared to concrete builds.
- More Eco-Friendly: Steel components are hoisted and spliced without water, reducing dust and pollution in surrounding areas.
- Better Cost Performance: Faster construction leads to reduced labor costs, with total expenses approximately 20-30% lower than traditional concrete buildings. Steel also offers greater durability.
- Lighter Structure: Lightweight metal walls and roofs significantly reduce overall weight, easing foundation loads compared to brick and concrete alternatives.
Our steel structure buildings mainly use high-quality H-section steel, I-section steel, color steel plates and sandwich panels with reliable performance and durability.
Our products have passed ISO 9001 quality management system certification and CE certification to meet international standards and can be customized according to different market requirements.
The construction period depends on the size and complexity. Generally, a 4,000 square meter building can be completed in about 40 days due to prefabricated components.
Yes, we can customize the design, size, and configuration of steel structure buildings according to customers' specific usage scenarios and functional requirements.
We provide detailed installation drawings and instructions. For large projects, we can also send professional engineers to the site for guidance to ensure smooth installation.
