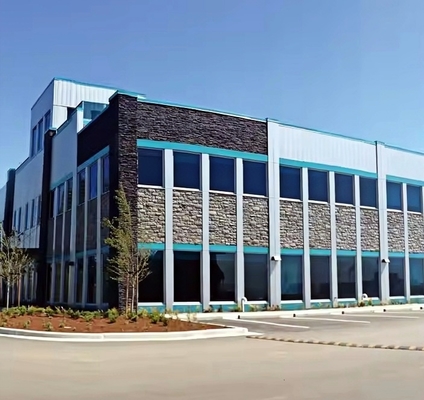

Q355B Q235B Custom Peb Steel Buildings Portal Frame For Industrial Use
| MOQ: | 1000 sqm |
| Price: | USD 40-60 / sqm |
| Standard Packaging: | Packed on steel pallet with fixture and loaded into 40'HQ/OT |
| Delivery Period: | 6 weeks after shop drawing get approval |
| Payment Method: | T/T,L/C |
| Supply Capacity: | 100,000 sqm / month |
Detail Information
Place of Origin
Shandong, China
Brand Name
TSIN
Certification
ISO, CE, SGS
Model Number
TSIN
Document
Warranty:
5 Years
Maintenance Costs:
Reduced
Labor Costs:
Lower
Connection:
Bolts
Insulation:
EPS, Glasswool, Rockwool, PU On Option
Thickness Of Panel:
50mm, 75mm, 100mm, 150mm, 200mm, 250mm
Using Life:
50 Years
Product:
Steel Structure
Material Grade:
Q355B, Q235B
Structure Type:
Portal Frame
Design Load:
Wind, Snow, Seismic
Design Software:
PKPM, Tekla Structures, CAD
Sand Blasting:
Sa 2.5
Surface Treatment:
Anti-corrosive Paint Or Hot Dipped Galvanized
Highlight:
Q355B peb steel buildings
,Q235B peb steel buildings
,Industrial portal steel frame buildings
Product Description
Customizable Prefabricated Steel Structure Building for Industrial Use
Product Specifications
| Attribute | Value |
|---|---|
| Warranty | 5 Years |
| Maintenance Costs | Reduced |
| Labor Costs | Lower |
| Connection | Bolts |
| Insulation | EPS, Glasswool, Rockwool, PU On Option |
| Thickness Of Panel | 50mm, 75mm, 100mm, 150mm, 200mm, 250mm |
| Using Life | 50 Years |
| Material Grade | Q355B, Q235B |
| Structure type | Portal frame |
| Design Load | Wind, Snow, Seismic |
| Design software | PKPM, Tekla structures, CAD |
| Sand blasting | Sa 2.5 |
| Surface treatment | Anti-corrosive paint or hot dipped galvanized |
Modern Commercial Light Warehouse Solution
This customized prefabricated steel structure warehouse features a steel load-bearing framework that serves as the backbone of the building. The main frame consists primarily of high-strength beams and columns, supported by a robust bracing system.
Structural Components
- Tie bars
- Knee braces
- Stay bars
- Column braces
- Horizontal braces
Advantages Over Traditional Concrete Warehouses
- Higher Strength & Seismic Resistance: Utilizes steel plates or sectional steel for enhanced durability
- Faster Construction: Prefabricated components allow for quick on-site assembly
- Sustainable & Reusable: Components can be dismantled, reused, and recycled
- Cost-Efficient: Modern design at competitive cost with superior performance
Applications
Ideal for various industrial applications including:
- Storage warehouses
- Industrial sheds
- Commercial garages
- Logistics centers
- Agricultural storage
Technical Specifications
Main Steel: Q355B, Q235B
Frame type: Portal frame, multi-story frame
Main frame: Hot-rolled or Welded H beam and column
Bracing components: Tie bar, staying bar, Horizontal bracing, Column bracing
Cladding system: Sandwich panel with glass wool, rock wool, PU insulation
Accessory: Ridge tile, trim, Gutter, Down pipe, skylight, clerestory
Door: Roll up door, industrial section door, swing door, Sliding door
Window: PVC window, aluminum window, metal louver
Crane: 5MT, 10MT, 15MT and more
Frame type: Portal frame, multi-story frame
Main frame: Hot-rolled or Welded H beam and column
Bracing components: Tie bar, staying bar, Horizontal bracing, Column bracing
Cladding system: Sandwich panel with glass wool, rock wool, PU insulation
Accessory: Ridge tile, trim, Gutter, Down pipe, skylight, clerestory
Door: Roll up door, industrial section door, swing door, Sliding door
Window: PVC window, aluminum window, metal louver
Crane: 5MT, 10MT, 15MT and more
Wall and Roof System
The roof panel typically runs as a single continuous length from eaves to ridge line. Wall panels are similarly continuous from bottom wall to eaves, constructed with 0.4mm-0.6mm thick corrugated metal sheets. For thermal insulation requirements, sandwich panels are available as an option.
Key Advantages
- Superior material properties compared to wood and concrete
- Precision manufacturing to strict specifications
- 100% recyclable materials
- Resistant to warping, bending, and twisting
- Enhanced building quality with reduced maintenance
- Improved safety and structural resistance
Construction Characteristics
Construction Period: Significantly faster than traditional methods with factory prefabrication and simple on-site assembly.
Environmental Protection: Minimal site disturbance, no water operations, and reduced dust pollution.
Cost Efficiency: 20-30% lower construction costs than traditional buildings with superior durability.
Structural Weight: Lightweight design reduces overall building weight while maintaining stability.
Additional Features
- Product Name: Steel Structure Building
- Package: Steel Pallet
- Insulation Options: EPS, Glasswool, Rockwool, PU
- Labor Costs: Lower than traditional construction
- Certifications: CE, ISO, SGS
- Minimum Order: 500 square meters
- Price Range: USD 40-60 per sqm
- Delivery Time: 6 weeks after shop drawing approval
- Supply Capacity: 100,000 sqm per month
