Q235B Q355B Prefabricated Steel Warehouse For Structural Steel Standards
| MOQ: | 1000 sqm |
| Price: | USD 40-60 / sqm |
| Standard Packaging: | Packed on steel pallet with fixture and loaded into 40'HQ/OT |
| Delivery Period: | 6 weeks after shop drawing get approval |
| Payment Method: | T/T,L/C |
| Supply Capacity: | 100,000 sqm / month |
Q355B prefabricated steel warehouse
,Q235B prefabricated steel warehouse
,Anti corrosive paint prefabricated steel frame homes
| Type | Steel Structure Building |
|---|---|
| Project Solution Capability | SketchUP/AutoCAD/PKPM/3D3S/TEKLA |
| Material | Q235B/Q355B Steel |
| Main frame | Welded H-shape Steel Beam |
| Surface treatment | Sand blasing Sa2.5 + Anti corrosive paint |
| Life Time | Main Structure 35-50 Years |
| Delivery Time | 25-40 Days |
| Application Fields | Warehouse, Multi-building, Workshops & plants, Hospital, School, Office, Apartment |
| Maximum Roof Load | 20+lb/sq.ft |

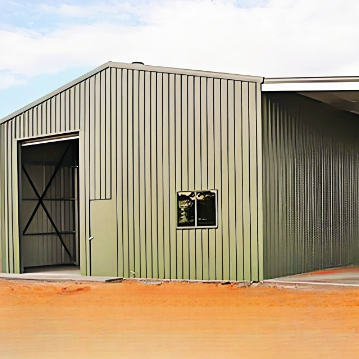

The high-strength prefabricated steel structure warehouse provides a comprehensive one-stop solution with fast delivery and experienced installation guidance. This building system is composed of two main parts: internal support framework and external enclosure components.
The steel frame features a portal steel frame structure, including steel columns, beams, and bracing. Together with the external enclosure, it forms a fully enclosed building capable of withstanding severe weather conditions such as strong winds, heavy rain, and snow.
All metal components are cut, welded, drilled, and painted in our workshop before transportation to the construction site. Each component is bolted on-site for quick and labor-saving installation.
The steel frame comprises five key structural elements:
- Tension members
- Compression members
- Bending members
- Combined-stress members
- Connections
- Lightweight construction with high strength, large spans, and reduced foundation pressure
- Shorter construction period compared to concrete buildings with simple on-site assembly
- 20-30% lower investment cost than traditional buildings
- High fireproof performance and corrosion resistance
- Buildings can be disassembled, moved easily, and recycled with no pollution
| Dimension | Length * width * eave height, roof slope |
|---|---|
| Type | Single/double/multi-slope; Single/double/multi-span; Single/double/multi-floor |
| Foundation | Concrete and steel foundation bolts |
| Column and Beam | Hot rolled or welded H steel Q355B, high strength bolts connection, straight or variable cross-section |
| Bracing | X or V type bracing made from angle steel or pipe |
| C/Z Purlin | Q235B C/Z section steel (C160-300 or Z160-300) |
| Roof/Wall Panel | Single colorful corrugated steel sheet or sandwich panel with EPS, rock wool, glass wool, or PU insulation |
| Accessories | Skylight belts, ventilators, down pipes, gutters, doors, windows |
| Surface Treatment | Painting or hot dip galvanized |
| Package | Nude or packed on steel pallet in 40'HQ/OT containers |
At TSIN, we adhere to all welding procedures in accordance with GB standards. Our dedicated Welding Inspectors are certified by the relevant government authorities, ensuring the highest levels of compliance and safety.
We conduct non-destructive testing (NDT) in line with contract specifications and applicable welding codes. This process includes comprehensive documentation of all inspections, test plans, and quality manuals.
- Dimension Check
- Visual Examination
- Ultrasonic Testing
We implement rigorous quality control measures throughout the project lifecycle, including:
- Material inspections before and after fabrication
- Precision measuring, cutting, and welding
- Accurate hole and cleat placement
- Proper packaging and loading sequence
- On-site erection when required
Qingdao Tsin Steel Structure Construction Technology Co., Ltd. provides integrated solutions for steel structure workshops, warehouses, and multi-storey buildings, including layout consulting, structural design, fabrication and delivery solutions, and installation guidance.
Based in Shandong, China since 2025, we serve clients in South America, Africa, Oceania, and other global markets with a team of 5-10 professionals.
Pre-production samples and final inspections before shipment ensure consistent quality standards.
Steel Structure Warehouses, Workshops, Buildings, Poultry Houses, and Prefab Houses.
20+ years experience providing complete steel structure solutions with integrated design, fabrication, and installation services.
We accept FOB, CFR, CIF, EXW delivery terms and T/T, L/C, Cash payments in USD, EUR, AUD, CNY.
