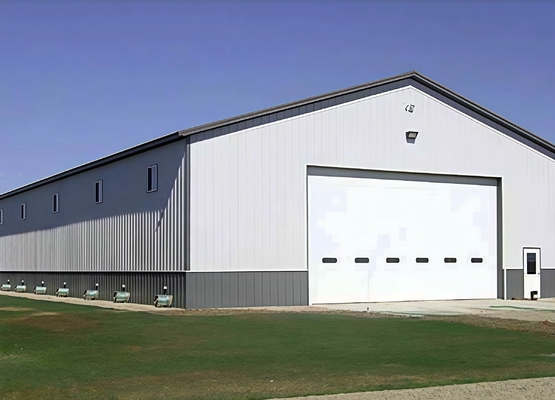

Prefabricated Steel Structure Fabrication For Commercial Buildings Q235B Q355B
| MOQ: | 1000 sqm |
| Price: | USD 40-60 / sqm |
| Standard Packaging: | Packed on steel pallet with fixture and loaded into 40'HQ/OT |
| Delivery Period: | 6 weeks after shop drawing get approval |
| Payment Method: | T/T,L/C |
| Supply Capacity: | 100,000 sqm / month |
Detail Information
Place of Origin
Shandong, China
Brand Name
TSIN
Certification
ISO, CE, SGS
Model Number
TSIN
Document
Application Fields:
Warehouse, Multi-building, Workshops & Plants, Hospital, School, Office, Apartment
Drawing Design:
AUTOCAD, SOLIDWORKS, TEKLA
Maximum Roof Load (lb./sq.ft)::
20+lb/sq.ft
Raw Steel Material:
Q235B, Q355B, ASTM A36
Frame Type:
Portal Frame
Design Parameter:
Wind Load,Snow Load And Earthquake
Working Scope:
Design,Fabrication, Installation
Life Span:
Around 30~50 Year
Highlight:
prefabricated steel structure commercial buildings
,Q235B steel structure buildings
,Q355B prefabricated steel buildings
Product Description
Prefabricated Steel Cow Shed Structure for Commercial Buildings - Q235B/Q355B
Product Specifications
| Application Fields | Warehouse, Multi-building, Workshops & plants, Hospital, School, Office, Apartment |
| Drawing Design | AUTOCAD, SOLIDWORKS, TEKLA |
| Maximum Roof Load | 20+lb/sq.ft |
| Raw Steel Material | Q235B, Q355B, ASTM A36 |
| Frame Type | Portal Frame |
| Design Parameter | Wind Load, Snow Load And Earthquake |
| Working Scope | Design, Fabrication, Installation |
| Life Span | 30-50 Years |
Comprehensive Steel Structure Solution
Our high-strength prefabricated steel structure offers a complete solution with rapid delivery and expert installation guidance. The design integrates an internal load-bearing steel frame with an external enclosure system for exceptional durability.
Structural Advantages
- Robust Portal Frame: Columns, beams, and bracing create a sealed building resistant to extreme weather
- Precision Manufacturing: Components cut, welded, drilled, and painted in our workshop
- Quick Installation: High-strength bolt assembly reduces labor costs
- Structural Elements: Tension, compression, bending, and combined-stress members
Construction Features
- Lightweight with high strength and large spans
- 20-30% lower cost than traditional buildings
- Shorter construction period with simple on-site assembly
- High fireproof performance and corrosion resistance
- Easily disassembled, moved, and recycled
Technical Specifications
Dimension: Custom length * width * eave height with variable roof slope
Type: Single/double/multi-slope; Single/double/multi-span; Single/double/multi-floor
Foundation: Concrete with steel foundation bolts
Column and Beam: Hot rolled or welded H steel Q355B with high strength bolts
Bracing: X or V type from angle steel or pipe
Purlin: Q235B C/Z section steel (C160-300 or Z160-300)
Roof/Wall Panel: Corrugated steel sheet or insulated sandwich panel
Quality Assurance
- Comprehensive material inspections before and after fabrication
- Precision measuring, cutting, and welding processes
- Accurate hole and cleat placement for structural reliability
- Professional support for on-site erection when required
About Qingdao Tsin Steel Structure
- Specialization: Integrated solutions for steel structure workshops, warehouses, and multi-storey buildings
- Capacity: 2,500 tons/month with 20,000 m² workshop space
- Services: Layout consulting, structural design, fabrication, delivery, and installation guidance
- Experience: 20+ years in complete steel structure solutions
- Global Reach: Serving South America, Africa, Oceania, and other markets
