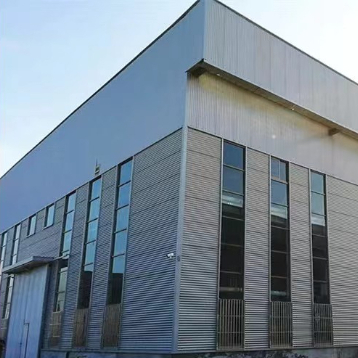

Multi Purpose Prefabricated Steel Structure Workshop Customized Modern Industrial
| MOQ: | 1000 sqm |
| Price: | USD 40-60 / sqm |
| Standard Packaging: | Packed on steel pallet with fixture and loaded into 40'HQ/OT |
| Delivery Period: | 6 weeks after shop drawing get approval |
| Payment Method: | T/T,L/C |
| Supply Capacity: | 100,000 sqm / month |
Detail Information
Place of Origin
Shandong, China
Brand Name
TSIN
Certification
ISO, CE, SGS
Model Number
TSIN
Document
Type:
Portal Frame Structure
C:
SketchUP/AutoCAD/PKPM/3D3S/TEKLA
Material:
Q235B/Q355B Steel
Main Frame:
Welded H-shape Steel Beam
Welding Method:
SAW, MIG,GMAW
Surface Treatment:
Anti-corrosive Paint Or Hot Dipped Galvanized
Life Time:
Main Structure 35-50 Years
Delivery Time:
25-40 Days
Standard:
GB Standard
Material Grade:
Q355B, Q235B
Structure Type:
Portal Frame
Design Load:
Wind, Snow, Seismic
Design Software:
PKPM, Tekla Structures, CAD
Sand Blasting:
Sa 2.5
Highlight:
prefabricated steel structure workshop
,Multi Purpose steel structure workshop
,Industrial steel warehouse buildings
Product Description
Customized Modern Industrial Design Multi-Purpose Prefabricated Steel Warehouse Building
Product Specifications
| Attribute | Value |
|---|---|
| Type | Portal Frame Structure |
| Design Software | SketchUP/AutoCAD/PKPM/3D3S/TEKLA |
| Material | Q235B/Q355B Steel |
| Main Frame | Welded H-shape Steel Beam |
| Welding Method | SAW, MIG, GMAW |
| Surface Treatment | Anti-corrosive paint or hot dipped galvanized |
| Life Time | Main Structure 35-50 Years |
| Delivery Time | 25-40 Days |
| Standard | GB Standard |
| Material Grade | Q355B, Q235B |
| Structure Type | Portal frame |
| Design Load | Wind, Snow, Seismic |
| Sand Blasting | Sa 2.5 |
Product Overview
At TSIN, we specialize in tailoring the fabrication of steel structure components to meet your unique requirements. We manufacture precisely according to your detailed drawings and specifications. We also provide structural steel that complies with international standards, including EN, DIN, ASTM, and JIS. In addition, we offer overseas sectional steel profiles such as IPE, IPN, UB, and W beams, available with a minimum order quantity of 60 tons.
Key Features of Steel Structure Construction
- Lightweight Design: High strength-to-weight ratio allows for large spans, reducing foundation pressure.
- Efficient Construction: Shorter construction periods compared to concrete buildings, facilitated by straightforward on-site assembly.
- Cost-Effective: Investment costs are typically 20-30% lower than traditional building methods.
- Durable Performance: Excellent fireproofing and corrosion resistance enhance longevity.
- Sustainable Solutions: Steel structures can be easily disassembled and relocated, allowing for environmentally friendly recovery and reuse.
Technical Specifications
| Products | Steel structure Fabrication |
|---|---|
| Material | Q235B, Q345B, S235JR, S355JR, SS400, A36, A572Gr50, A992 |
| Surface Treatment | 1. Painting; 2. Galvanized |
| Certification | ISO9001, ISO14001, OHSAS18001, EN1090, ISO3834 |
| Standard | GB, ASTM, EN, ISO, AS/ANS |
| Specification | Per drawing |
| Place of Origin | Shandong, China |
| MOQ | 20 Tons |
| Application | Steel Warehouse, Steel Workshop, Multi-storey Building |
Product Gallery
Quality Assurance
TSIN undertakes all welding procedures in accordance with GB standard. Our dedicated Welding Inspectors are certified by the government authority. We perform non-destructive testing (NDT) in accordance with contract documents and applicable welding codes. As part of this process, we ensure that all inspections, test plans and quality manuals are fully documented and maintained.
Tests we conduct include:
- Dimension check
- Visual examination
- Ultrasonic testing
Whether manufacturing a domestic structure, industrial building or commercial building, our precision fabrication reduces time onsite and the associated labour costs. At TSIN, we believe that the quality of our work is a defining feature of our services. We are committed to providing exceptional quality products and a service which is reflective of our dedication to excellence at all stages of a project lifecycle.
We deploy extensive quality control measures to safeguard the quality from beginning to end. This includes the inspections of all materials prior to, and following fabrication. TSIN employs highly trained and experienced professional fabrication and welding staff, and because of this, we are able to deliver a wide variety of fabrication services including a variety of steel sections, designed to meet your specific project requirements.
Our fabrication process includes:
- Measuring, cutting and welding the steel
- Placing the holes and cleats in the correct position
- Packaging and carefully loading in the right sequence
- Dispatching to site and erecting if required
Frequently Asked Questions
Q1: Can I visit your factory before ordering?
A: Yes, we welcome factory visits. We can arrange airport pickup from Qingdao Airport and assist with hotel bookings.
Q2: How do we cooperate on a project?
A: Our process includes: 1) Reviewing your project requirements, 2) Providing free design drawings for your approval, 3) 30% deposit after contract signing, 4) Final design confirmation, 5) Production and final payment before shipment, 6) Optional installation support.
Q3: What is the price range?
A: Prices vary based on material quality, size, and design complexity, typically ranging from $19 to $100+ per square meter.
Q4: Do you provide installation service?
A: We provide detailed construction drawings and manuals. For additional support, we can send workers and engineers to your site (with costs covered by the buyer).
Q5: What is the delivery time?
A: Typically 30 days after deposit receipt, with partial shipments available for large orders.
Q6: What anti-rust treatments are available?
A: Options include: normal anti-rust paint, epoxy zinc primer, hot-dip galvanization, hot-dip galvanization with PU finish, or stainless steel structures (301/304/316).
Q7: How is quality controlled?
A: Our products meet CE EN1090 and ISO9001:2008 standards. We provide quality inspection reports to verify materials and manufacturing processes.
